Thursday, October 31, 2013

You can get a fish to bite your bate,


You can get a fish to bite your bate, but your fishing reel better have this bearing to bring it in. One of the coolest applications for the featured SQL12RS bearing is a fishing reel. This bearing is found to be the mechanism behind reeling in the the fish. One side of the bearing is a female thread, while the other side is a male thread. The dimensions for the featured bearing are 12mm inner diameter with a M12x1.25 thread. for more information about the SQL12RS L-Ball Rod end,

L-Ball Rod Ends SQL12RS, inner diameter is 12mm, the internal thread size is M12x1.25, Here is the interchange designation in every brand:
  • Item: SQL12RS Bearing
  • Type: L-Ball Rod Ends
  • Quantity: One L-Shape Rod end
  • Static load Capacity: 3.7 KN


Dimensions (mm)
d d1 d2 d3 I I2 I3 S1 L L1 L2 D1 D2 D3 S2
12 M12x1.25 17 32 17 21 15 84 40 6.5 20 17.5 22 32 19



You see something “different” about this bearing?


You see something “different” about this bearing? To the naked eye it looks pretty normal; however this bearing has a slightly different dimension than the standard 6202-2RS bearing. The inner diameter is 5/8” as oppose to 15mm. It is important to know the dimensions of your bearing for that reason. The part number on your bearing can be universal, but it can have a dimension difference. 6202-10-2RS 5/8"x35x11 Ball Bearings, more information

  • Item: 6202-10 2RS Ball Bearings
  • Type: Deep Groove Ball Bearings
  • Closures: 2 Rubber Shields
  • Inner Diameter: 5/8" inch
  • Outer Diameter: 35mm
  • Width: 11mm
  • Size: 5/8" x 35mm x 11mm
  • Dynamic load rating Cr: 7,650 N
  • Static load rating Cor: 3,700 N
  • Limiting Speed: Grease Lubrication: 15,000 RPM

Monday, October 28, 2013

First gear, second gear, thirds gear, and go!



First gear, second gear, thirds gear, and go! This bearing is found in the clutch of automobile. The design of the bearing permits maximum speeds at maximum loads, resists wear for longer life, and minimizes noise and vibration. Additionally, a self-aligning design allows the clutch release bearings to control clutch conditions associated with the misalignment of drivetrain components. This bearing is proven to perform in standard and heavy duty applications. Featured Nachi NP-47SCRN40P Clutch Release Bearing, measures 37mm x 47mm x 23mm http://www.vxb.com/page/bearings/PROD/Kit12517



NP-47SCRN40P-4 Nachi Self-Aligning Clutch-Release Bearing 31x47x23:Japan:Ball BearingNP-47SCRN40P-4 Nachi Self-Aligning Clutch-Release Bearing 31x47x23:Japan:Ball Bearing
NP-47SCRN40P-4 Nachi Self-Aligning Clutch-Release Bearing, inner diameter is 31mm, outer diameter is 47mm and the width is 23mm
  • Item: NP-47SCRN40P-4 Nachi Bearing
  • Type: Automotive Self-Aligning Clutch-Release Bearing
  • HONDA CIVIC (1991~)
  • HONDA ACCORD
  • Dimensions: 31mm x 47mm x 23mm/metric
  • Inner Diameter: 31mm
  • Outer Diameter: 47mm
  • Width: 23mm
  • Made in Japan



Now try spelling Polytetrafluoroethylene


Now try spelling Polytetrafluoroethylene in a spelling bee! That is what the seals on this featured bearing are made from. This type of seal is lighter and has less friction making it great for skateboarding, rollerblading and any other fun application. These bearings are also used in “not so fun” applications such as vacuum cleaners or washing machines. The inner race, outer race, and ball bearings are made of chrome steel. The dimensions on the 608-2TS are 8mm x 22mm x 7mm. http://www.vxb.com/page/bearings/PROD/Kit7092


8 Skateboard Bearings:Nylon: Sealed:vxb:Ball Bearing


  • Item: 608 Skateboard Bearings
  • Type: Deep groove ball bearings
  • Cage: Nylon high speed balls retainer
  • Closures: sealed (could be easily removed and reinstalled)
  • Inner Diameter: 8mm
  • Outer Diameter: 22mm
  • Width: 7mm
  • Size: 8mm x 22mm x 7mm
  • Quantity: 8 Bearings

Bearings have lips too...


Bearings have lips too… Well, it’s not really a lip; it’s a flange! What is the purpose of the flange? The flange makes it easy to mount and remove a bearing from an application. A bearing without a flange sits in the housing and would need a special method/tool to remove it. This featured bearing is lubricated with a light oil preserve, making it spin smoothly, http://www.vxb.com/page/bearings/PROD/Kit14217



  • Item: FR8UG Flanged Ball Bearing
  • Type: Deep Groove Radial Ball Bearing
  • Quality: Electric motor quality
  • Lubrication: Self Lubricated a light oil preserve
  • Closures: Open
  • Size: 1/2" x 1 1/8" x 5/16" inch
  • Inner Diameter: 1/2" inch
  • Outer Diameter: 1 1/8" inch
  • Width/Height/Bridth: 5/16" inch

  •

    Wednesday, October 23, 2013

    A rebel? Perhaps





    A rebel? Perhaps. There is a slight dimensional difference in this bearing. The standard 608 bearing is 8mm x 22mm x 7mm and this “special” bearing has an inner diameter of ¼”. You will come across this situation quite often in the bearing world. Here, at VXB.com, we ask you for your bearing’s dimensions to confirm we are offering the correct bearing. We have quite the collection of special sized bearings. http://www.vxb.com/page/bearings/PROD/1-4inch/Kit1080



    … I need them for my cannon.” “Your cannon?!






    “… I need them for my cannon.” “Your cannon?!” I asked. Yes, I have a mini cannon and it needs 5/8” loose bearings. This was one of the coolest applications I’ve heard bearings being used in. If you don't have a mini cannon, it's OK, you can use these chrome steel bearings in any application that is suitable for this size. These featured bearings are G25 in sphericity and are made of 52100 hardened chrome steel, for more information, visit this link http://www.vxb.com/page/bearings/PROD/Kit8598

    100 Loose Bearing Balls 5/8


  • Size: 5/8"= 0.625 inch
  • Material: Chrome Steel 52100
  •

    This rail system is such a square!





    This rail system is such a square! Your “typical” linear system comes with a cylindrical shaft, but not in this case. This complete linear system comes with a square shaft and a flanged square slide block, ready for installation. This system is great for any application with high repeatability. This system is strong and accurate for improved production. So if you are thinking of building something requiring a linear system, keep this one in mind! for more information http://www.vxb.com/page/bearings/PROD/20mmLinearMotionSystems/Kit17822

    20mm Linear Guideway System

    Rail
    Name
    Rail Dimensions (mm)
    Block Dimensions (mm)
    HH1NdDPEWBB1CL1LK1GMTT1H2H3
    HYR20-4000284.39.569.56020635354020.577.510.2512M681067



    Monday, October 21, 2013

    Stamped and ready to go!


    This SBPF208-24 bearing is in a stamp steel housing ready to be installed. This housing is thinner than the cast iron housing and more affordable. There are 3 square holes on the outer part of the housing for installation. The bearing itself has a set screw to hold the shaft in place after mounting.



    Here are the specs of the SBPF208-24 Pressed Steel Housing Bearing 3-Bolt Flanged Mounted:
  • Item: SBPF208-24 Bearing
  • Type: Pressed Steel Housing Unit
  • Shaft Diameter: 1 1/2" Inch
  • Bolt Size: 1/2" Inch
  • Bearing No: SB208-24
  • Housing No: PF208
  • Quantity: One Bearing

  • Friday, October 18, 2013

    The electric slide was not built on this unit

    The electric slide was not built on this unit, but it should have been! Our 20mm aluminum slide unit is one of our most popular items for those looking to build their own linear system. Our featured slide unit is open, making it perfect for a supported shaft. This block has a pre installed 20mm linear bushing and has 4 threaded mounting holes on top ready for installation. The block, itself, is made of durable aluminum. http://www.vxb.com/page/bearings/PROD/LM/Kit8306


    Shaft Diameter D H E T F G W B C L S
    20mm 32 20.99 34 10 31.4 52.4 68 37 54 51 M6



    Wednesday, October 16, 2013

    How hot are you running Mr. Bearing?


    How hot are you running Mr. Bearing? Find out with our infrared digital thermometer! This digital thermometer uses a laser pointer to measure the heat that is being produced by the bearing. This handy tool helps you ensure your bearing isn’t running in higher temperatures than allowed. The thermometer has the capacity to measure temperatures of -50 to 380ยบ C. It measures 155mm x 80mm x 40mm, find more information about the Infrared Digital Thermometer at http://www.vxb.com/page/bearings/PROD/Kit12519 .

    Here are the specs that nobody reads :)

    Laser Targeting
    • Red Laser Power : less than 0.5 MW
    • LCD with Back Light
    • Celsius/Fahrenheit Select Switch
    • Laser ON/OFF switch
    • Automatic Power Off
    • Display functions
    Specification:
    • Temperature range: -50~380 Celsius (-58 ~ 716 Fahrenheit)
    • Accuracy: 2% or 2 Celsius
    • Resolution: 0.1 Celsius (0.1 Fahrenheit)
    • Response time: Less than or equal 0.8s
    • Emissivity: 0.95 Fixed
    • Distance to Spot Ratio: 8:1
    • Spectral Response: 5-14um
    • Storage temperature: -20~50 Celsius (-4~122 Fahrenheit)
    • Operating temperature: 0~50 Celsius (32~122 Fahrenheit)





    The wheels on the bus go round and round, round and round


    The wheels on the bus go round and round, round and round; unless the bus needs new wheel bearings! We carry wheel bearings for all car makes and models. The featured bearing is for several Honda models. It is composed of Chrome steel inner and outer race, chrome steel cage, and ball bearing. The bearing is sealed on both sides to protect the bearing from contamination. The double row bearing allows for higher load capacity. For more information on this, or any other bearing, contact us! http://www.vxb.com/page/bearings/PROD/kit8409
    Fits the following cars:
  • ACURA INTEGRA (1986-1989)
  • HONDA CIVIC (1984-1991)
  • HONDA CIVIC WAGON 4WD (1984-1991)
  • HONDA CRX (1988-1991)
  • HONDA CRX (1500DX) (1984-1987)
  • HONDA CRX (1500SI) (1985-1987
  • Monday, October 14, 2013

    Need a compliment? Buy yourself a full complement bearing!


    Need a compliment? Buy yourself a full complement bearing! This single-row, unground ball bearing is perfect for applications supporting moderate loads and low speed. Another benefit to a full compliment bearing is their ability to carry higher radial load more than caged bearings. The flange in this bearing allows for easier mounting and it holds the bearing in place. This bearing's dimensions are 1/4" x 13/16" x 5/16", for more information, visit http://www.vxb.com/page/bearings/PROD/Kit14205







    Friday, October 11, 2013

    When female and male come together..


    Our rod ends are used in multiple applications. For example, they are used in cars, machinery, etc..  http://www.vxb.com/page/bearings/PROD/Kit12667 Need high strength and ductility performance? This is the item for you!

    Need to re-lubricate? No problem! The zinc fitting is designed for lubrication. The PHSB7L (pictured in the top right) is our female left handed rod end. The POSB8L (pictured in the bottom right) is our male left handed rod end.

    Thursday, October 10, 2013

    This gloomy day made me lazy and therefore I shall share about these lazy susan bearings.

    This gloomy day made me lazy and therefore I shall share about these lazy susan bearings. We definitely live in a time of comfort and accessibility. These lazy susan bearings are found in swivel chairs, bar stools, lazy boys, ect. We have heard of people making their own projects with them such as attaching them to television consuls, book cases, coat hanger, etc. These featured lazy susans are made of zinc plating and are pre drilled, ready for mounting. for more information, please click on the following search link:
    http://www.vxb.com/SRCH.html?Store_Code=bearings&Search=lazy+susan+zinc+square

    Big ball, little balls, foam, and housing!


    Big ball, little balls, foam, and housing; these are all the components of this transfer unit. The NCBT-1 ½” transfer unit is composed of a nylon main ball, ninety 3/16” small ball bearings, and stainless steel housing for additional corrosion resistance. Transfer units are used in factories to move product along assembly lines, however lately many people have come up with creative ideas on including these transfer units in their projects. A neoprene cushion is included with this featured transfer unit, to permit vertical deflection and assist with uniform load distribution, for more information about the NCBT-1 ½” Stainless Steel Flange Transfer Unit, please visit http://www.vxb.com/page/bearings/PROD/Kit12392

    Wednesday, October 9, 2013

    Our ceramic bearings get along!


    Our ceramic bearings get along, there is no friction there…! True statement, full ceramic bearings produce the least amount of friction possible making them perfect for high speed applications. These bearings are made to be used in applications with high humidity, high heat, and light load. Ceramic is in fact brittle so any kind of vibration or impact can damage the bearing. The featured bearing measures 9mm x 17mm x 5mm and has a PTFE cage. For more information on this bearing, contact us, we are happy to help. http://www.vxb.com/page/bearings/PROD/CeramicBallBearings/Kit8327

    Monday, October 7, 2013

    They see me rolling, they hating, they want to catch me riding dirty…


    “They see me rolling, they hating, they want to catch me riding dirty…” Well they won’t catch these bearings riding dirty! Shiny and polished, these 5/8” loose ball bearings are often used in art pieces. You can use these loose bearings in pretty much any application in need of loose bearings, to replace damaged bearings, or even to create your own application; get creative! The loose bearings are solid 52100 chrome steel. We offer different sphericity options from G5 and up, for more information, please visit http://www.vxb.com/page/bearings/PROD/Kit11934

    Support? We support! We have supported shafts!


    Support? We support! We have supported shafts! We offer a large range of sizes and lengths. http://www.vxb.com/page/bearings/PROD/LM/Kit8148 The featured shaft is a chrome steel hardened shaft complete with the attached support. This shaft measures 2” in diameter and is 24” long. This linear system is most commonly found in factories, machine shops, or home made projects. For more information on this and other linear systems, please contact us, we are happy to help. WSS32x24" 2" inch Supported Shaft Rail Assembly was made in Japan by NB linear motion systems.

    Thursday, October 3, 2013

    Thrusting ain’t easy!


    Thrusting ain’t easy! Ask this poor bearing. Made to take axial load, this 51210 thrust bearing is great for applications such as swivel chairs, flag poles, and bar stools; just make sure you don’t spin too much. This featured bearing is made of chrome steel and comes with 2 grooved thrust washers. The dimensions are 50mm as bore, 78mm as outside diameter and 22mm wide (including the washers). For more information, contact us, we are happy to help! http://www.vxb.com/page/bearings/PROD/Kit13837

    Wednesday, October 2, 2013

    Oh snap, there goes my shaft!


    Oh snap, there goes my shaft! Well not if you used a spherical plain bearing. These bearings are designed to move as the shaft moves, providing flexibility and support for the shaft. Technically this bearing is not exactly a bearing, but a bushing. The inner race glides inside the outer race and has no ball bearings. The featured bearing is a GEZ200ES-2RS, fully equipped with an oil hole and measures 2" x 3 3/16" x 1 3/4" inches, for more information visit http://www.vxb.com/page/bearings/PROD/Kit12165

    Tuesday, October 1, 2013

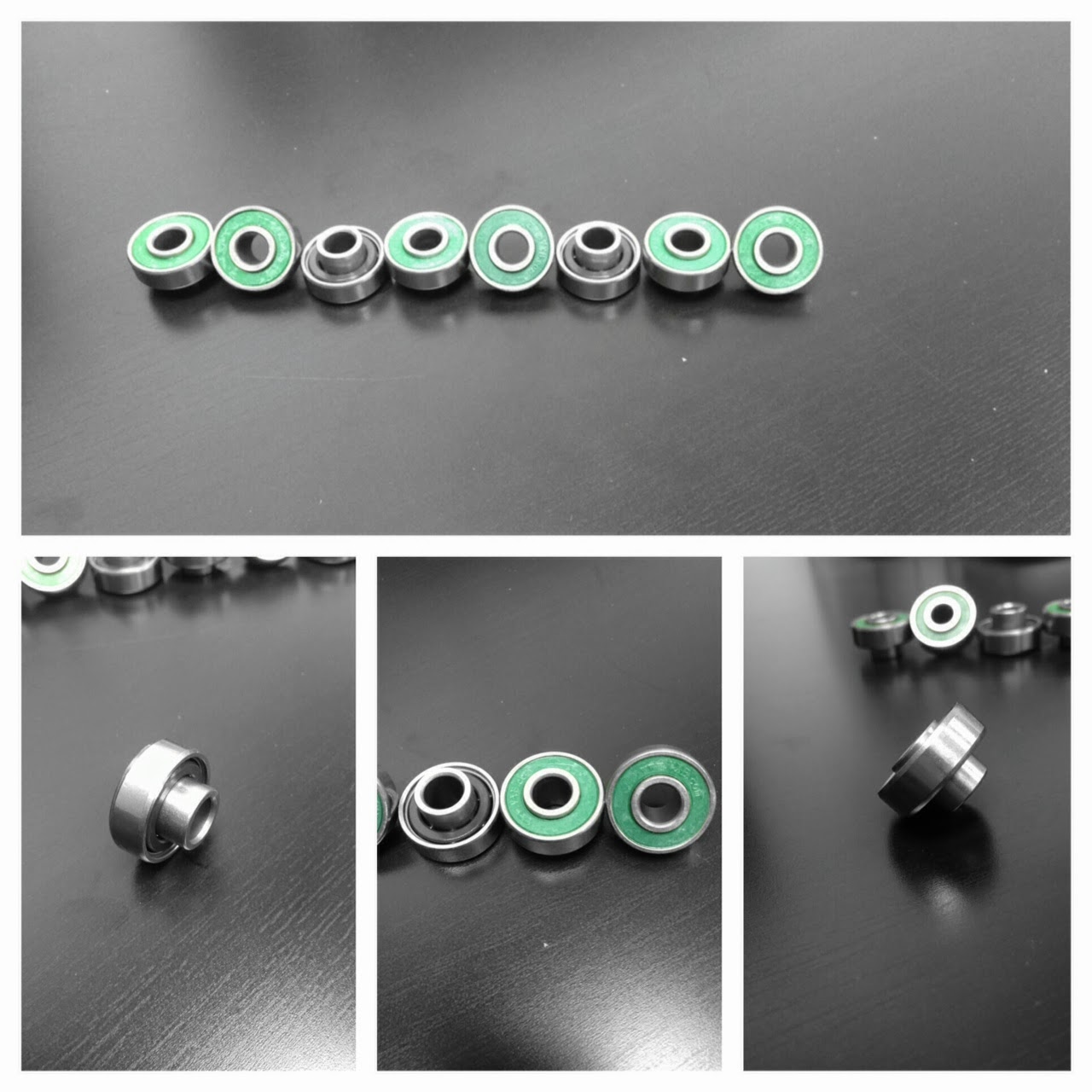

    Odd looking fellow!


    Odd looking fellow! What is that thing sticking out of the inner race? Don’t be alarmed, it is not a mutant bearing. This 608RS bearing has an extended inner race so you don’t need a spacer. This bearing is one of our most popular 608 bearings. The ball bearings are made of ZrO2 ceramic for least amount of friction. The cage is nylon, which helps with speed and it is sealed on one side. The inner and out race is made of chrome steel. http://www.vxb.com/page/bearings/PROD/Kit8786
